Product Details:
|
| Product Name: | 50MM Ivory White Color Rock Wool Panel | Width Of Wall Panel: | 950mm |
|---|---|---|---|
| Width Of Roof Panel: | 960mm | Length: | Customized , ≤11.8m |
| Thickness: | 50-200mm | Core Density: | 60-120kg/m3 |
| Steel Sheet Thickness: | 0.286-0.6mm | Application: | Apartment, Office Building, Hospital, School, Mall |
| Fireproof Grade: | A1 | Color: | Grey White,Red,Blue,Wooden Color,Brick Design Etc |
| Plac Of Origin: | Foshan,Guangdong,China | Certification: | ISO9001-2008 |
| Life Span: | 15-20 Years |

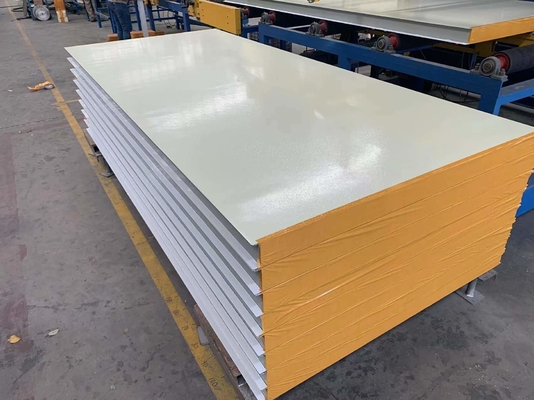

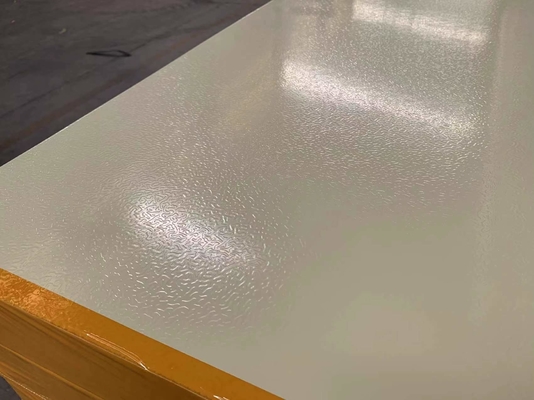

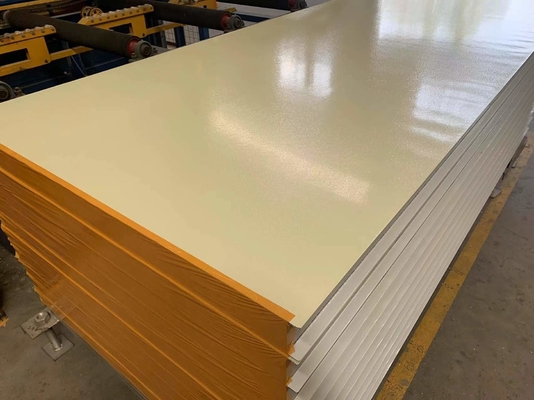

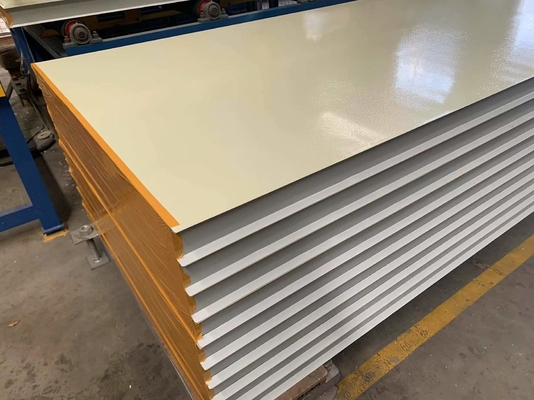

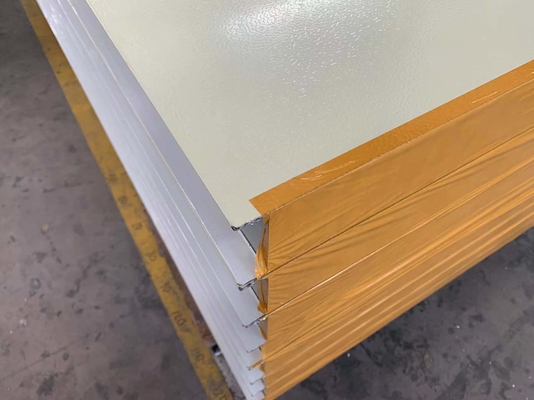

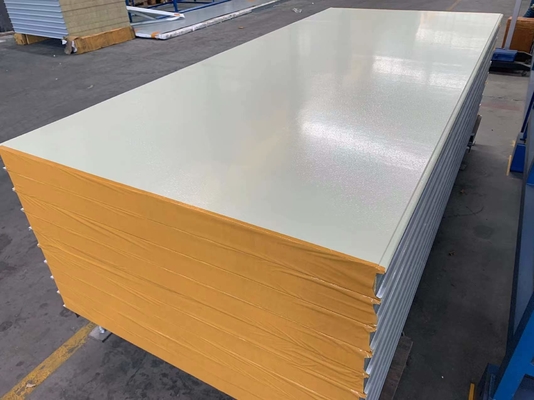

50MM New Style Rock Wool Sandwich Panel Ivory White Color Steel Sheet Rock Wool Sandwich Panel For Wall
Rock Wool Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
Product Description
|
Product Name
|
Rock Wool Sandwich Panel
|
|
Density of eps
|
60-120kg/m3
|
|
Effective width
|
950mm/1150mm For Wall Panel, 960mm/1050mm For Roof Panel
|
|
EPS core thickness
|
50mm,75mm,100mm,150mm,200mm
|
|
Steel thickness
|
normal:0.286-0.6mm
|
|
Length
|
According to customer's request, but if container transportation,normal less 11.8m
|
|
Color
|
China red,seablue,whitegrey,as customized
|
|
surface material
|
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
|
The thermal conductivity
|
0.038W/M.K
|
|
Water absorption
|
≤6%
|
|
The compression strength
|
≥69KPa
|
|
Fire proof
|
A1
|
|
Dimensional stability(70℃,48h)
|
≤5%
|
|
Application temperature
|
-20℃-75℃
|
|
Wall Grace finish
|
Embossment,big rib,flat finish
|
|
Package
|
standard seaworthy exporting package,plastic thin film package and Wooden pallets
|
|
Transport
|
By sea
|
What is rock wool sandwich panel?
Rock wool sandwich panel is a sandwich panel made from rock wool. Rock wool sandwich panels give full play to the unique properties of rock wool core materials, and have significant effects on fire prevention, thermal insulation, sound absorption and sound insulation.
1. Excellent fire resistance: The raw materials, production technology and formula used in the rock wool sandwich panel make it have good fire resistance.
2. Good thermal insulation: The thermal insulation performance of rock wool sandwich panels is calculated based on the thermal conductivity of rock wool=0.043W/㎡K and the thickness of the rock wool core material in the corresponding proportion.
3. The sound absorption and heat insulation effect is remarkable: Sound insulation: Rock wool sandwich panels can significantly reduce noise transmission, especially suitable for places where designated flights pass. In addition, after the use of rock wool roof panels, rain and hail impact on the roof steel plates of the building and cause indoor noise, which is also significantly reduced.
Sound absorption: Rock wool sandwich panel also has an excellent attracting effect, it can absorb sound in a relatively wide frequency range.
Where to use rock wool sandwich panel?
Our rock wool sandwich are widely used on clean room project as the wall and ceiling panel, and we can also used on the prefab house.
Features
1) sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
2) sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction.
3) in the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials.
Packing & Loading Container
Our Company
Foshan Desuman Building Materials Technology Co.,Ltd .
We are a professional manufacturer of sandwich panel products and we have our own facotry and trade team .
We are engaged in designing, manufacturing, building and marketing for sandwich panel products , detachable container houses and pref-abricated houses. Our main products includes prefabricated house,modular house, steel structure warehouse and related construction products etc.
We have succeeded in passing ISO9001:2008 Enterprise Quality Management Authentication.
We could design and build living house,office building,dormitory and other residential & commercial constructions,achieving
perfect combination of industrial technique and social function.
We pay great attention to keep improvement to the current products, as well as developing new updating styles to satisfy the
market demand.We sincerely hope to join hands with our clients to create a better future in principle of win-win cooperation!
