Product Details:
|
| Exteroir Finishing: | PPGI, Stainless Steel, | Thickness: | 50mm, 75mm, 100mm, 125mm, 150mm, 200mm |
|---|---|---|---|
| Width: | 950mm / 1150mm | Propor Density: | 20kg/m³，25kg/m³ |
| Color: | Sea Blue, Sky Blue, Ivory White, Off White, Lotus Green, Or Customized Color | ||
| High Light: | 100mm Propor Sandwich Panel,PPGI Propor Sandwich Panel,Propor Stainless Steel Sandwich Panel |
||

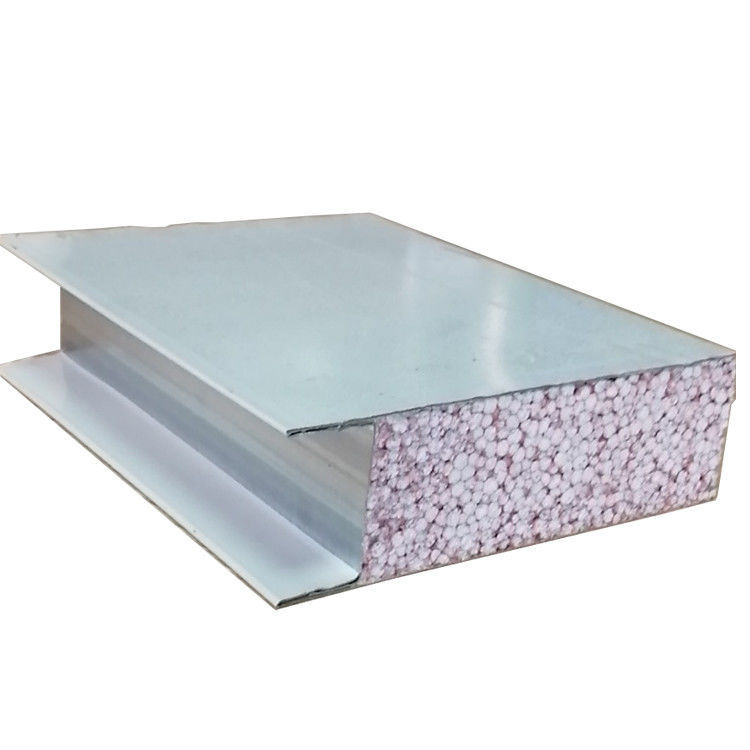

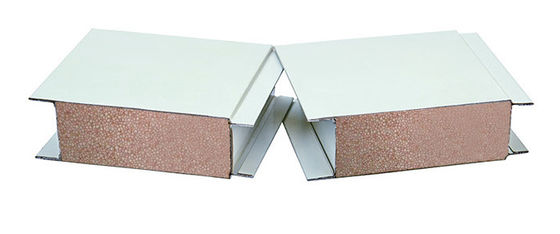

Propor Sandwich Panel
Perforated Steel Fireproof EPS Propor Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
|
Product Name
|
Fireproof Propor Sandwich Panel Flame Proof EPS Sandwich Roof Panel In Low Cost
|
|
Density of Foam
|
20-25kg/m3
|
|
Effective width
|
950mm/1150mm For Wall Panel , 960mm/1050mm For Roof Panel
|
|
EPS core thickness
|
50mm,75mm,100mm,150mm,200mm
|
|
Steel thickness
|
normal:0.3-0.6mm
|
|
Length
|
According to customer's request, but if container transportation,normal less 11.8m
|
|
Color
|
China red,seablue,whitegrey,as customized
|
|
surface material
|
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
|
The thermal conductivity
|
0.038W/M.K
|
|
Water absorption
|
≤6%
|
|
The compression strength
|
≥69KPa
|
|
Fire proof
|
A1
|
|
Dimensional stability(70℃,48h)
|
≤5%
|
|
Application temperature
|
-20℃-75℃
|
|
Wall Grace finish
|
Embossment,big rib,flat finish
|
|
Package
|
standard seaworthy exporting package,plastic thin film package and Wooden pallets
|
|
Transport
|
By sea
|
sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction.
In the fast installation and put into use, the assembly and disassembly, material turnover multiplexing index, have obvious advantages, greatly reducing the construction site temporary facilities, will be indispensable new lightweight construction materials.
