Product Details:
|
| Exterior Finishing: | PPGI, Stainless Steel, Galvanized Steel Sheet | Thickness: | 50mm, 75mm, 100mm, 125mm, 150mm |
|---|---|---|---|
| Width: | 950mm, 1150mm | PU Foam Density: | 35kg/m³， 40kg/m³ |
| Color: | Ivory White, Off White, Sea Blue, Sky Blue, Lotus Green Or Customized Color | ||
| High Light: | Cold Room PU Sandwich Panel,40kg/m3 PU Sandwich Panel,40kg/m3 PU Cold Room Panel |
||

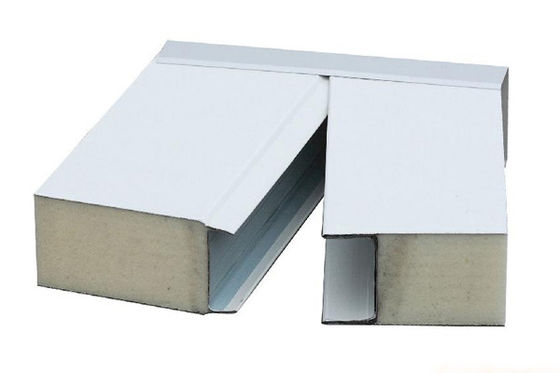

Cold Room Use PU sandwich Panel
sandwich panel used in large industrial plants, warehouses, supermarkets, hospitals, stadiums, cold storage, activities room, buildings plus layer, clean workshop and heat insulation fire place.
sandwich plate appearance, bright color, good overall effect, it sets the bearing, thermal insulation, fireproof, waterproof in one, and no two decoration, is a widely used, especially in the construction site of the temporary facilities such as office, warehouse, walls, but also embodies the modern construction site civilization construction.
PUR Sandwich Panel is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, garage, shop, etc, which features temp-keeping, heat insulation, weight-bearing, weatherproof with the rich colorfulness and good appearance.
|
Product Name
|
PUR(Polyurethane) Sandwich Panel |
| Density of eps | 35-40kg/m3 |
| Effective width | 950mm/1150mm For Wall Panel, 960mm/1050mm For Roof Panel |
| EPS core thickness | 50mm,75mm,100mm,150mm,200mm |
| Steel thickness | normal:0.286-0.6mm |
| Length | According to customer's request, but if container transportation,normal less 11.8m |
| Color | China red,seablue,whitegrey,as customized |
| surface material |
PPGI steel, GI steel ,PPGL steel ,GL steel,stainless steel
|
| The thermal conductivity | 0.038W/M.K |
| Water absorption |
≤6%
|
| The compression strength | ≥69KPa |
| Fire proof | B1 B2 |
| Dimensional stability(70℃,48h) | ≤5% |
| Application temperature | -20℃-75℃ |
| Wall Grace finish | Embossment,big rib,flat finish |
| Package | standard seaworthy exporting package,plastic thin film package and Wooden pallets |
| Transport |
By sea
|
Product Description

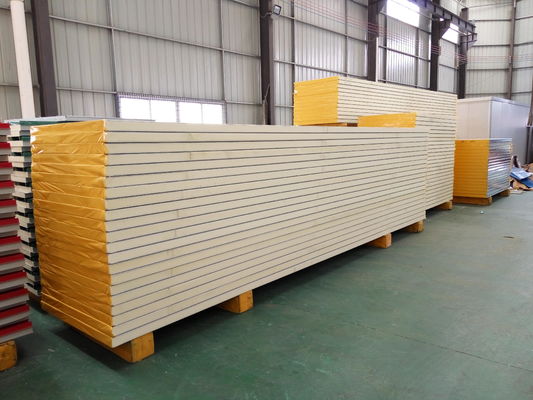

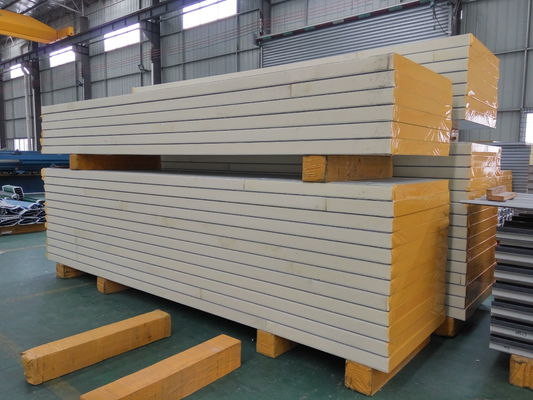

Packing & Loading Container
