Product Details:
|
| Product Name: | EPS Sandwich Panel | Brand: | Desuman |
|---|---|---|---|
| Exterior Finishing: | PPGI, Stainless Steel, Galvanized Steel Sheet | Core Material: | EPS Foam |
| Thickness: | 50mm, 100mm, 125mm, 150mm, 200mm... | Width: | 950mm / 1150mm |
| EPS Density: | 8kg/m³，10kg/m³，12kg/m³，14kg/m³，16kg/m³，18kg/m³，20kg/m³ | Color: | Sea Blue, Sky Blue, Off White, Ivory White, Lotus Green, Bright Red, Or Customized Color |
| Highlight: | 125mm EPS Clean Room Wall Panel,125mm Clean Room Wall Panel,PPGI 125mm EPS Wall Panel |
||
Fire Retardant EPS Sandwich Panel Use For Clean Room Wall Panel

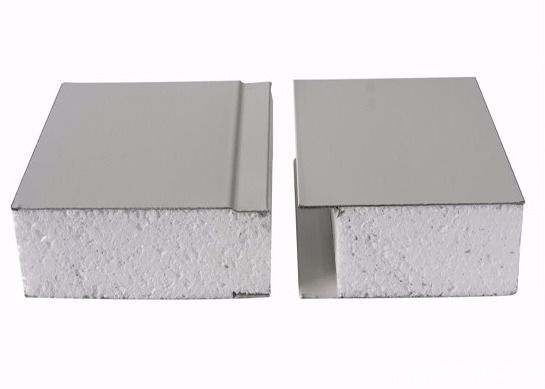

Polystyrene foam sandwich panel (EPS foam sandwich panels) is a light weight building board made from two outer layers of steel plates and a inner layer of polystyrene, which are then heated and pressurized by computer controlled color steel forming machine. It is an integration of load-bearing, heat insulation, fireproof, waterproof, and also finishing free. It is a widely used and reflects the civility of modern construction sites, especially in temporary housing at construction sites (such as offices, warehouses, fences, etc.,). It has obvious advantages, especially in quick installation, assembly and disassembly and recyclability, which can reduce temporary housing costs.
Fire resistance grade: Class B
Waterproof performance: Good
Features: Light weight, convenient installation, short construction period, low comprehensive cost, flexible usage, length of panels can be tailored according to engineering design requirements and installation and transportation conditions.

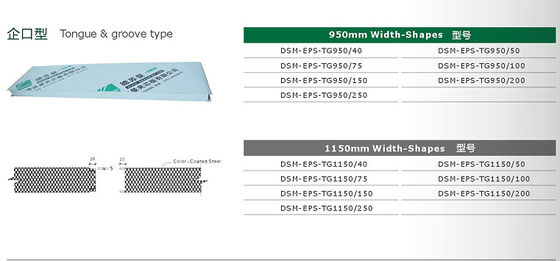

EPS Sandwich Panel Specificatoin:
| Panel Thickness | Wall Panel | 50mm, 75mm, 100mm, 125mm, 150mm, 200mm |
| Roof panel | 50mm, 75mm, 100mm, 125mm, 150mm | |
| Panel width | Wall Panel | 950mm or 1150mm |
| Roof panel | 960mm or 1050mm | |
| Panel Length | Wall / Roof | no limited, but it's better no longer than 12m for transport limit. |
| External steel thickness | 0.286mm, 0.326mm, 0376mm, 0.426mm, 0.476mm, 0.5mm, 0.6mm, 0.7mm, 0.8mm, 1.0mm | |
| EPS foam density | 8kg/m³, 10kg/m³, 12kg/m³, 14kg/m³, 16kg/m³, 18kg/m³, 20kg/m³ |
EPS Sandwich Panel Characteristic:
1. Light weight. Time-saving and labor-saving for installation
2. High strength
3. Low cost
4. Water proof
5. Easy to install and easy to clean
6. Good heat insulation performance. Thermal conductivity=0.032W/m.K
7. Sound proof
8. Moisture proof
EPS Sandwich Panel Applications:
1. Prefabricated House
2. Container house
3. Clean room
4. steel structure warehouse / workshop
5. Hospital
6. Building internal partation
Sandwich Panel Color Sheets

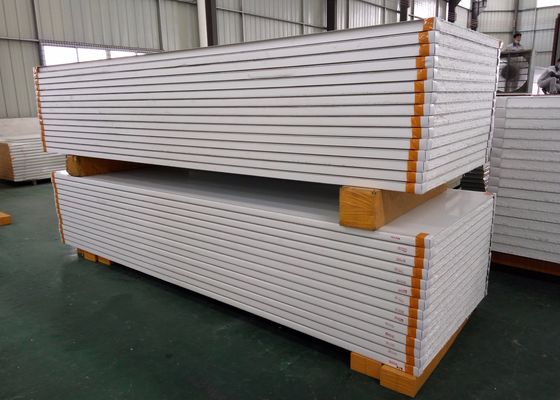

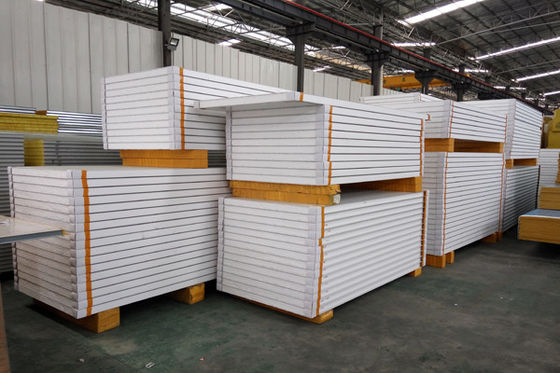

EPS sandwich panel Packing and Container Loading
