Product Details:
|
| Product Name: | Flat Pack Container House | Dimension: | 2438/3000x6058x2891mm |
|---|---|---|---|
| Application: | Office, Laber Camp, Domitory, Clinic, Family House,etc... | Frame: | Galvanized Steel Frame |
| Insulation: | EPS, PU, Glass Wool, Rock Wool, Etc... | Door: | Steel Composite Door |
| Window: | PVC Window Or Aluminum Alloy Window | Floor: | 18mm Fiber Cement Board + Vinyl Floor |
| Highlight: | EPS Flat Pack Prefab House,ISO Flat Pack Prefab House,EPS Prefab Home Office |
||
Flat Pack Container House Features:
(1) Flexible Combination

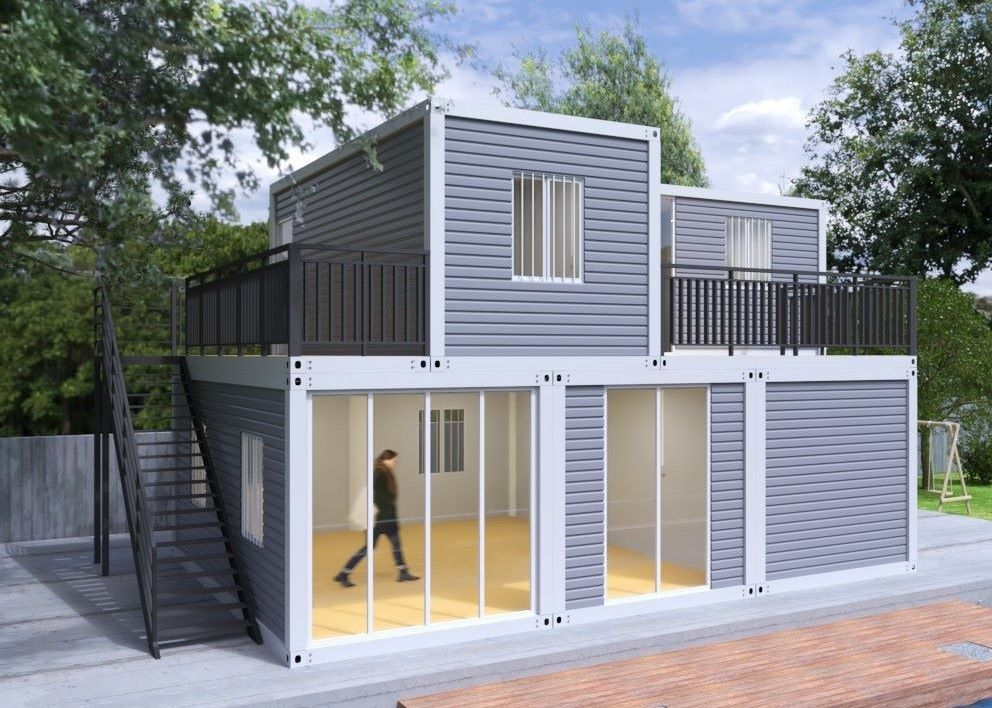

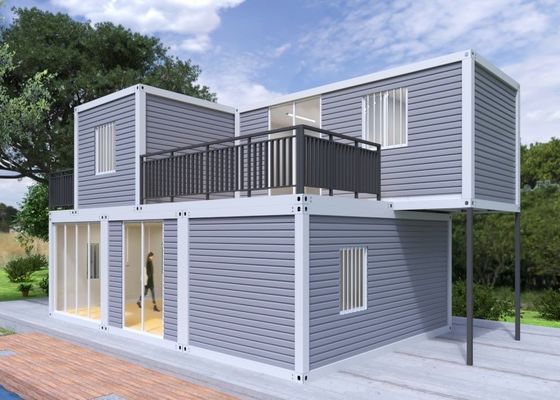

It could be used alone, or combined horizontally to create big open space, or stacked vertically up to 3 storeys.
(2) Flexible Transport method
*Delivery by whole container after installation
*4 units packed horizontally as a 20’
*6 units packed vertically into a 40’ high-cube shipping container.
(3) Low Transporting cost
4 units can be packed as a 20’ shipping container, which can save 3/4 freight cost; And 6 units can be packed into a 40’ high-cube shipping container.
(4) High prefabrication
Electrical system has been prefabricated in the roof frame and wall panels.
Plumbing pipes has been prefabricated in the bottom frame.
Doors and windows has been prefabricated in the wall panels.
Above high prefabrication could decrease the site construction period greatly. Usually, four workers could install one unit in 3 hours.
Flat Pack Container House Specification
| Size | Length | 6058mm / 5800mm | |
| Width | 2438mm/ 3000mm | ||
| Height | 2891mm | ||
| Standard accessories | Roof System |
Top structure (steel structure + 0.45mm thicknessd steel sheet + 70mm thickness PU foam + Electrical tube and wiring + outdoor connection socket) |
|
| Chassis System | steel struction chassis + 18mm thickness cement-fiber board + 2mm thickness PVC floor sheet (for cold climate, we can add bottom insulation) | ||
| Permitted loading:>2.5KN/m2 | |||
| Wall System | sandwich panel, could be EPS sandwich panel, rock wool sandwich panel, glass fiber sandwich panel, or PU sandwich panel according to different requests. The thickness could be 50mm, 60mm, 75mm, 100mm | ||
| Door System | Steel security door / Fire-proof door / Sandwich panel door | ||
| Window System | Aluminum alloy shutter window and the plastic-steel window, single or double glazed | ||
| Floor System | PVC, plywood or customized | ||
| Option | Drainage system | Provided plan, design and constrution | |
| Electric system | Provided plan, design and constrution | ||
| Technical parameter | Resistant temperature | -40℃ to 40℃ | |
| Wind resistance | 210km/h | ||
| Earthquake resistance | Grade 8 | ||
Installation Step:

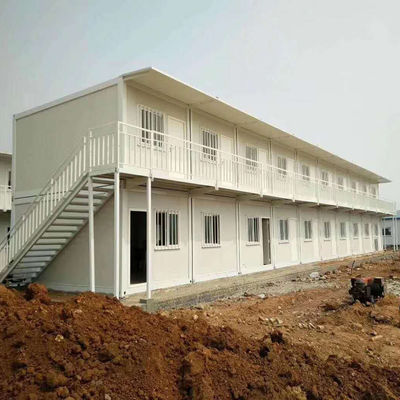

Flat Pack Container House Project Reference
Desuman Company Informations
RFQ:
Q1:How can I place an order?
A:After you choose productions you are interested in,you can leave us message on alibaba,or contact us via e-mail,whatsapp,or wechat.
Q2:How to pay?
A::T/T wilL be more appreciated.30% deposit before producing,70% balance before loading.
Q3:Can you design for me?
A:Yes,our professional engineer team can do personalized design drawings following customers'idea.
Q4:How do I install it?
A:We will provide detailed installation video and instruction to you.Technicians will be sent to help you on site if necessary.However,the visa fee,tickets,accommation, food and wages will be under taken by buyers.
